Description:
Used for ambulance, ICU, operating room, emergency department, field first-aid and transport .
Main Features:
1. Microcomputer controlled, constant volume, pressure triggered.
2. LCD monitor, multiparameter digital display.
3. Light and handy, mainframe weights 3 kg, the overall weight is less than 7 kg ( with the oxygen cylinder and all the accessories).
4. AC, DC and build-in Li-battery ( can work for more than 8 hours) are all available.
5. Can be used for both invasive and noninvasive, both children and adults.
Technical parameters:
-
Ventilation mode: CMV, A/C, SIMV, Sigh, SPONT, etc.
-
Tidal Volume: 50 ~ 1200ml, continuously adjustable, digital display.
-
Respiratory Rate: 1 ~ 60bpm, continuously adjustable, digital display.
-
Oxygen Concentration: 40 ~ 100%, continuously adjustable
-
Synchronous trigger sensitivity: -10 ~ 0hpa
-
PEEP: 0, 5 ~20hpa
Monitoring and Alarm Function:
-
Multiple parameters monitoring and display functions.
-
Multiple alarm and prompt functions.
-
Multiple security protection functions.
Service Conditions:
-
Power Supply: AC, DC, Build-in Li-battery..
-
Gas Supply: Oxygen cylinder, Central oxygen supply.
Basic configuration:

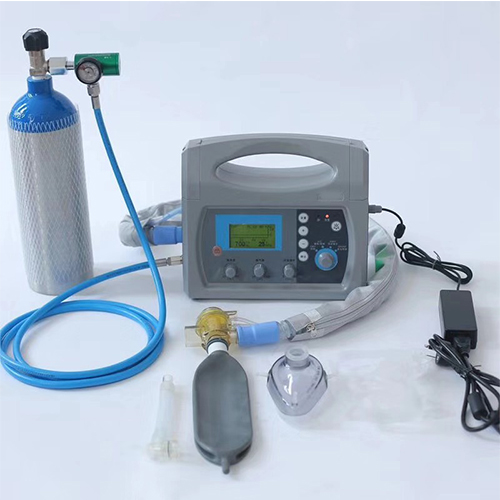

Mainframe of ventilator, carrying bag, silicone breathing circuits, oxygen cylinder, pressure reducing valve, high-pressure oxygen tube, power adapter, etc.
∷
